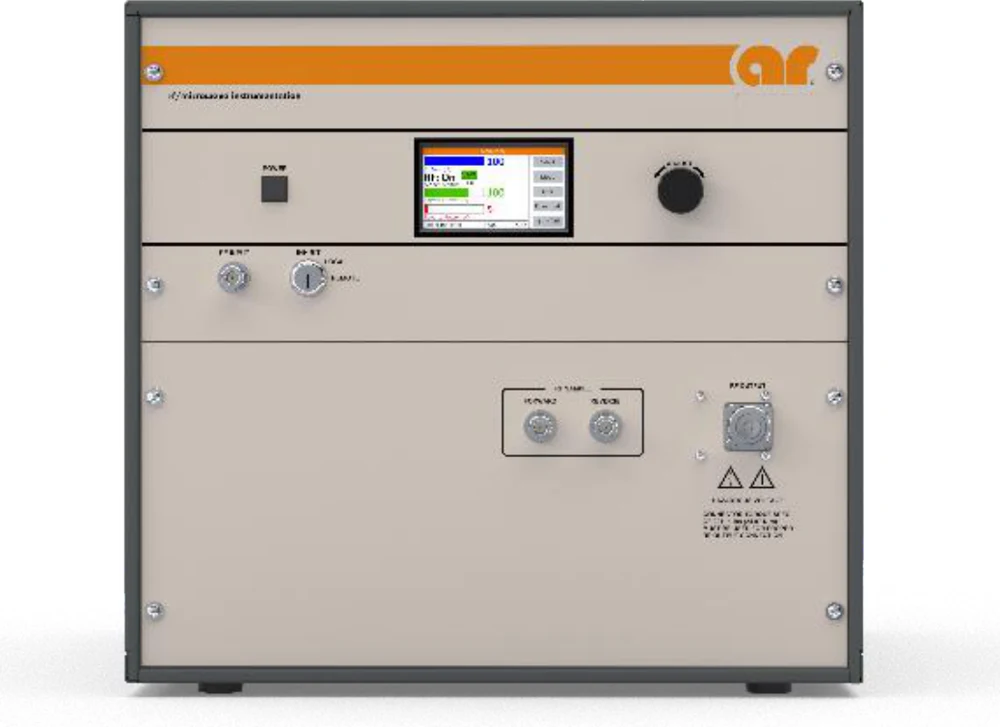

AR 250S1G6C Amplifier, 250 W, 1 to 6 GHz

Key facts

AR 250S1G6C at a glance

250 W CW minimum, 1 GHz to 6 GHz
Class A design
100 % mismatch tolerant: it keeps working into a high VSWR, an open or a short circuit
Built-in fault monitoring and protection, including input overdrive above 0 dBm
Remote control by Ethernet, USB, GPIB, fibre-optic serial and RS-232
Modular design for maintenance and service, low acoustic noise
Three-year manufacturer's warranty
US export classification EAR99

Figures from the manufacturer's product page. Specifications are subject to change; the datasheet governs. Quotations on request.

Where it fits

What the 250S1G6C is used for

1 GHz to 6 GHz holds most of the radar, navigation and communication bands that MIL-STD-461 RS103, ISO 11452-2 and the vehicle manufacturer specifications test against, and IEC 61000-4-3 ends at 6 GHz as well. One amplifier across the whole band means one band change in the test instead of two or three. The S series is solid state throughout, so there is no tube to age and no warm-up time, and the 1 to 6 GHz family runs from 30 W to 1000 W.

Which model a laboratory needs is a system design question. Send us your test plan and we will size the amplifier with the rest of the system.

Typical standards for this product

MIL-STD-461 RS103ISO 11452-2ISO 11451-2RTCA/DO-160 Section 20IEC 61000-4-3

Calibration

Calibrated on site, by the people who supplied it

Amplifiers, including AR models, are covered by our RF component calibration: gain and flatness are measured at the drive levels you use. Calibration is carried out in your laboratory by the LAB Support Southeast Asia team, under the A2LA accredited ISO/IEC 17025 scope of LAB Support Ltd.

Amplifier and RF component calibration →

Frequently asked

AR 250S1G6C in Malaysia

Is the AR 250S1G6C a solid-state or a TWT amplifier?

Solid state, Class A. The S in the model number marks the solid-state microwave series; AR's travelling wave tube amplifiers carry a T.

Where can I buy the AR 250S1G6C in Malaysia?

ICX Lab Services in Penang is the authorised distributor of AMETEK CTS products, and AR is one of the brands under AMETEK CTS, together with EM TEST and Teseq. Send us the model number through the contact page or WhatsApp and we reply with a configuration and a quotation. Quotations on request.

Who installs and supports the 250S1G6C after delivery?

We do. ICX Lab handles delivery, installation and training, and coordinates factory service, firmware and repairs with AMETEK CTS on your behalf.

AR RF/Microwave Instrumentation is part of AMETEK Compliance Test Solutions. Product name, specifications and image are taken from ar.ametek-cts.com.
