AR · solid-state amplifier

AR 500W1000C

A 500 W Class A amplifier for the 80 MHz to 1000 MHz band of military and automotive radiated immunity testing, with a touch screen and built-in power monitoring.

Request a quotation Spec sheet at ar.ametek-cts.com

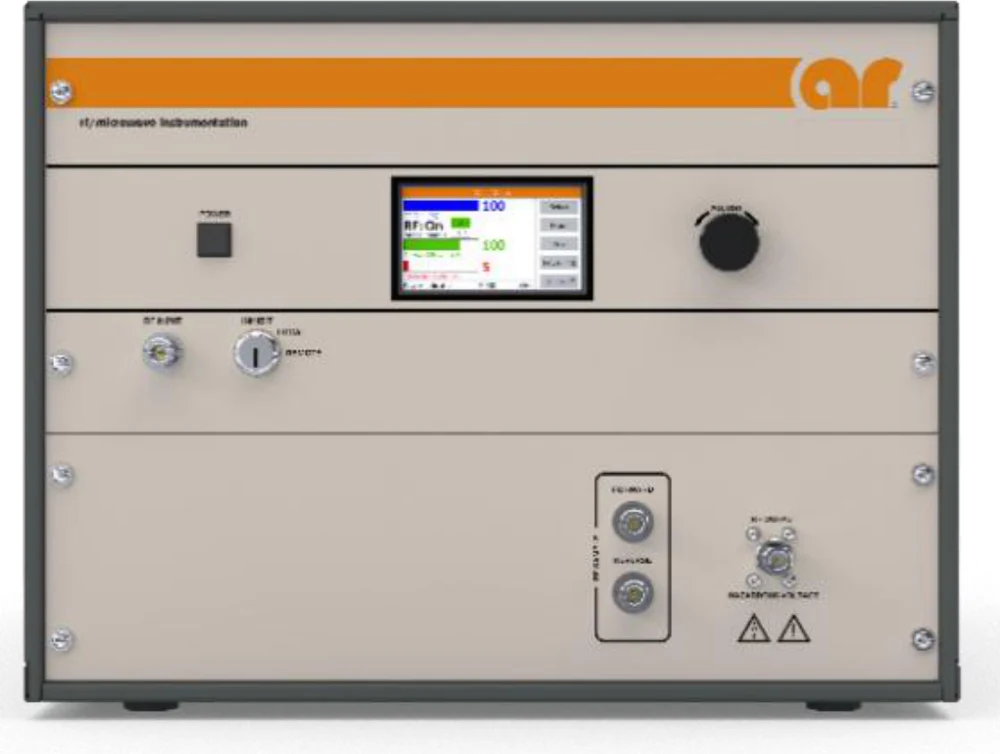

AR 500W1000C solid-state amplifier
Key facts

AR 500W1000C at a glance

  • 500 W CW minimum, 80 MHz to 1000 MHz
  • Touch screen display with fault logging
  • RF sample ports with forward and reverse power monitoring
  • VSWR monitor with a user-settable limit, and user-settable ALC
  • Class A design
  • 100 % mismatch tolerant: it keeps working into a high VSWR, an open or a short circuit
  • Built-in fault monitoring and protection, including input overdrive above 0 dBm
  • Remote control by Ethernet, USB, GPIB, fibre-optic serial and RS-232
  • Modular design for maintenance and service, low acoustic noise
  • Three-year manufacturer's warranty
  • US export classification EAR99

Figures from the manufacturer's product page. Specifications are subject to change; the datasheet governs. Quotations on request.

Where it fits

What the 500W1000C is used for

80 MHz to 1 GHz is the first band of ISO 11452-2 in the absorber-lined shielded enclosure, a core part of MIL-STD-461 RS103 and RTCA/DO-160 Section 20, and the first band of IEC 61000-4-3. The W series is the AR range built for it, from 50 W to 10 kW. The 500W1000C adds forward and reverse sample ports, so the power meters of the test system can be connected without an external coupler.

Which model a laboratory needs is a system design question. Send us your test plan and we will size the amplifier with the rest of the system.

Typical standards for this product

MIL-STD-461 RS103ISO 11452-2ISO 11451-2RTCA/DO-160 Section 20IEC 61000-4-3
Calibration

Calibrated on site, by the people who supplied it

Amplifiers, including AR models, are covered by our RF component calibration: gain and flatness are measured at the drive levels you use. Calibration is carried out in your laboratory by the LAB Support Southeast Asia team, under the A2LA accredited ISO/IEC 17025 scope of LAB Support Ltd.

Amplifier and RF component calibration →
Related

Goes with the 500W1000C

AR 250S1G6C, 1 to 6 GHz →AR ATR26M6G-1 antenna →Teseq NSG 6000A →All AR models →
Frequently asked

AR 500W1000C in Malaysia

What does the C at the end of AR 500W1000C mean?

AR model numbers read as power, series and upper frequency: 500 W, W series, 1000 MHz. The final letter is the revision of the design, so a 500W1000C is a later generation than a 500W1000A or B.

Where can I buy the AR 500W1000C in Malaysia?

ICX Lab Services in Penang is the authorised distributor of AMETEK CTS products, and AR is one of the brands under AMETEK CTS, together with EM TEST and Teseq. Send us the model number through the contact page or WhatsApp and we reply with a configuration and a quotation. Quotations on request.

Who installs and supports the 500W1000C after delivery?

We do. ICX Lab handles delivery, installation and training, and coordinates factory service, firmware and repairs with AMETEK CTS on your behalf.
