AR · solid-state amplifier

AR 40S6G18C

A 40 W Class A solid-state amplifier from 6 GHz to 18 GHz, where tube amplifiers used to be the only choice.

Request a quotation Spec sheet at ar.ametek-cts.com

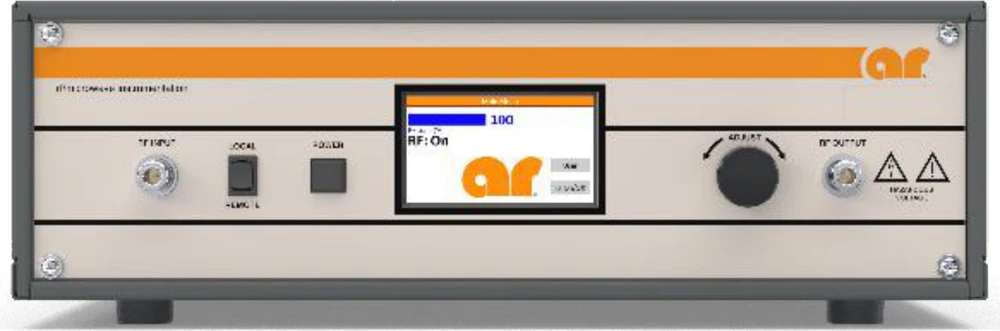

AR 40S6G18C solid-state amplifier
Key facts

AR 40S6G18C at a glance

  • 40 W CW minimum, 6 GHz to 18 GHz
  • Class A design
  • 100 % mismatch tolerant: it keeps working into a high VSWR, an open or a short circuit
  • Built-in fault monitoring and protection, including input overdrive above 0 dBm
  • Remote control by Ethernet, USB, GPIB, fibre-optic serial and RS-232
  • Modular design for maintenance and service, low acoustic noise
  • Three-year manufacturer's warranty
  • US export classification 3A001

Figures from the manufacturer's product page. Specifications are subject to change; the datasheet governs. Quotations on request.

Where it fits

What the 40S6G18C is used for

Above 6 GHz the work is military, aviation and automotive radar-band immunity, and until recently it meant a travelling wave tube amplifier. The 40S6G18C does it in solid state, with the low spurious output and linearity of a Class A design. The 6 to 18 GHz family runs from 20 W to 450 W.

Which model a laboratory needs is a system design question. Send us your test plan and we will size the amplifier with the rest of the system.

Typical standards for this product

MIL-STD-461 RS103RTCA/DO-160 Section 20ISO 11452-2
Calibration

Calibrated on site, by the people who supplied it

Amplifiers, including AR models, are covered by our RF component calibration: gain and flatness are measured at the drive levels you use. Calibration is carried out in your laboratory by the LAB Support Southeast Asia team, under the A2LA accredited ISO/IEC 17025 scope of LAB Support Ltd.

Amplifier and RF component calibration →
Related

Goes with the 40S6G18C

AR 250S1G6C, 1 to 6 GHz →AR FL8018 field probe kit →All AR models →
Frequently asked

AR 40S6G18C in Malaysia

Is the AR 40S6G18C export controlled?

Yes. The manufacturer states US export classification 3A001 for this model, so an export licence may be required. We coordinate this with the manufacturer as part of the order.

Where can I buy the AR 40S6G18C in Malaysia?

ICX Lab Services in Penang is the authorised distributor of AMETEK CTS products, and AR is one of the brands under AMETEK CTS, together with EM TEST and Teseq. Send us the model number through the contact page or WhatsApp and we reply with a configuration and a quotation. Quotations on request.

Who installs and supports the 40S6G18C after delivery?

We do. ICX Lab handles delivery, installation and training, and coordinates factory service, firmware and repairs with AMETEK CTS on your behalf.

AR RF/Microwave Instrumentation is part of AMETEK Compliance Test Solutions. Product name, specifications and image are taken from ar.ametek-cts.com.

Need a quotation for the 40S6G18C?

Tell us the standards you test to and we will configure it with the accessories it needs.
