AR · solid-state amplifier

AR 100A400A

A 100 W Class A amplifier from 10 kHz to 400 MHz, covering the full bulk current injection range in one unit.

Request a quotation Spec sheet at ar.ametek-cts.com

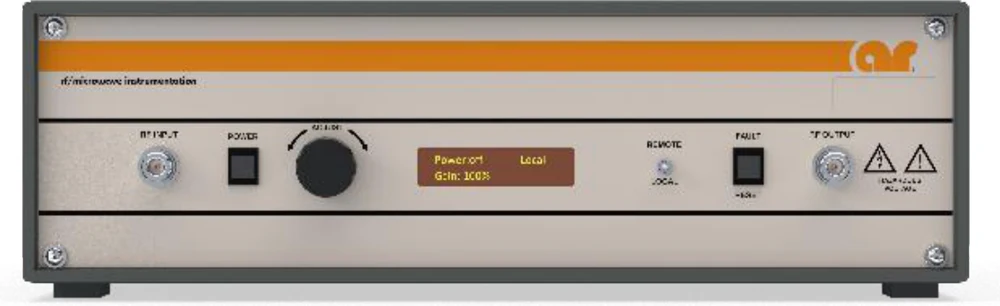

AR 100A400A solid-state amplifier
Key facts

AR 100A400A at a glance

  • 100 W CW minimum, 10 kHz to 400 MHz
  • Benchtop cabinet, or rack mounting with the cabinet removed
  • Class A design
  • 100 % mismatch tolerant: it keeps working into a high VSWR, an open or a short circuit
  • Built-in fault monitoring and protection, including input overdrive above 0 dBm
  • Remote control by Ethernet, USB, GPIB, fibre-optic serial and RS-232
  • Modular design for maintenance and service, low acoustic noise
  • Three-year manufacturer's warranty
  • US export classification EAR99

Figures from the manufacturer's product page. Specifications are subject to change; the datasheet governs. Quotations on request.

Where it fits

What the 100A400A is used for

Bulk current injection to ISO 11452-4 runs from 1 MHz to 400 MHz and MIL-STD-461 CS114 from 10 kHz to 200 MHz. The 100A400A covers both without a band change, together with IEC 61000-4-6. An injection probe presents a load that changes strongly with frequency, so an amplifier that tolerates any mismatch without folding back is the practical choice.

Which model a laboratory needs is a system design question. Send us your test plan and we will size the amplifier with the rest of the system.

Typical standards for this product

ISO 11452-4IEC 61000-4-6MIL-STD-461 CS114RTCA/DO-160 Section 20
Calibration

Calibrated on site, by the people who supplied it

Amplifiers, including AR models, are covered by our RF component calibration: gain and flatness are measured at the drive levels you use. Calibration is carried out in your laboratory by the LAB Support Southeast Asia team, under the A2LA accredited ISO/IEC 17025 scope of LAB Support Ltd.

Amplifier and RF component calibration →
Related

Goes with the 100A400A

AR 150A100D, 10 kHz to 100 MHz →Teseq NSG 4070C2 →EV component EMC test bench →All AR models →
Frequently asked

AR 100A400A in Malaysia

Does the AR 100A400A cover the whole BCI frequency range?

Yes. ISO 11452-4 bulk current injection runs from 1 MHz to 400 MHz, and the 100A400A covers 10 kHz to 400 MHz in one band.

Where can I buy the AR 100A400A in Malaysia?

ICX Lab Services in Penang is the authorised distributor of AMETEK CTS products, and AR is one of the brands under AMETEK CTS, together with EM TEST and Teseq. Send us the model number through the contact page or WhatsApp and we reply with a configuration and a quotation. Quotations on request.

Who installs and supports the 100A400A after delivery?

We do. ICX Lab handles delivery, installation and training, and coordinates factory service, firmware and repairs with AMETEK CTS on your behalf.

AR RF/Microwave Instrumentation is part of AMETEK Compliance Test Solutions. Product name, specifications and image are taken from ar.ametek-cts.com.

Need a quotation for the 100A400A?

Tell us the standards you test to and we will configure it with the accessories it needs.
