AR · solid-state amplifier

AR 150A100D

A 150 W Class A amplifier from 10 kHz to 100 MHz, the band of bulk current injection and conducted RF immunity testing.

Request a quotation Spec sheet at ar.ametek-cts.com

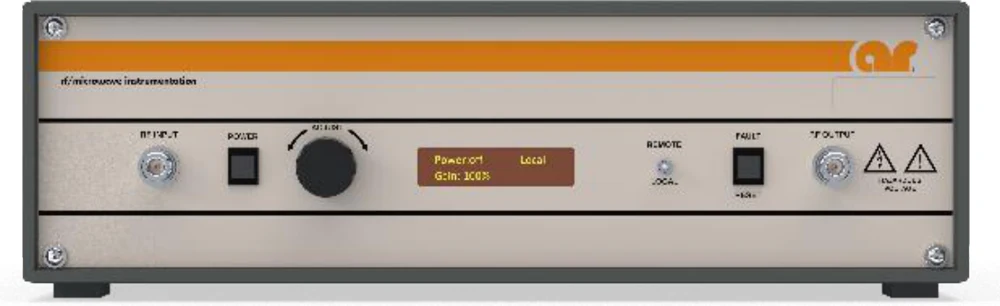

AR 150A100D solid-state amplifier
Key facts

AR 150A100D at a glance

  • 150 W CW minimum, 10 kHz to 100 MHz
  • Benchtop cabinet, or rack mounting with the cabinet removed
  • Class A design
  • 100 % mismatch tolerant: it keeps working into a high VSWR, an open or a short circuit
  • Built-in fault monitoring and protection, including input overdrive above 0 dBm
  • Remote control by Ethernet, USB, GPIB, fibre-optic serial and RS-232
  • Modular design for maintenance and service, low acoustic noise
  • Three-year manufacturer's warranty
  • US export classification EAR99

Figures from the manufacturer's product page. Specifications are subject to change; the datasheet governs. Quotations on request.

Where it fits

What the 150A100D is used for

The 150A100D works where military and automotive conducted immunity begins: the lower part of the MIL-STD-461 CS114 and ISO 11452-4 bulk current injection ranges, and RTCA/DO-160 Section 20 conducted susceptibility. Its band also contains the whole 150 kHz to 80 MHz range of IEC 61000-4-6. A conducted immunity test drives a CDN, a clamp or an injection probe, none of which is a matched load, and that is where the mismatch tolerance of a Class A design matters.

Which model a laboratory needs is a system design question. Send us your test plan and we will size the amplifier with the rest of the system.

Typical standards for this product

MIL-STD-461 CS114ISO 11452-4RTCA/DO-160 Section 20IEC 61000-4-6
Calibration

Calibrated on site, by the people who supplied it

Amplifiers, including AR models, are covered by our RF component calibration: gain and flatness are measured at the drive levels you use. Calibration is carried out in your laboratory by the LAB Support Southeast Asia team, under the A2LA accredited ISO/IEC 17025 scope of LAB Support Ltd.

Amplifier and RF component calibration →
Related

Goes with the 150A100D

AR 100A400A, 10 kHz to 400 MHz →AR 50U1000, 10 kHz to 1000 MHz →Teseq CDN M016 →All AR models →
Frequently asked

AR 150A100D in Malaysia

What is the AR 150A100D used for?

Conducted RF immunity testing for military and automotive programmes: bulk current injection to MIL-STD-461 CS114 and ISO 11452-4 at the lower frequencies. Its 10 kHz to 100 MHz band also contains the 150 kHz to 80 MHz range of IEC 61000-4-6.

Where can I buy the AR 150A100D in Malaysia?

ICX Lab Services in Penang is the authorised distributor of AMETEK CTS products, and AR is one of the brands under AMETEK CTS, together with EM TEST and Teseq. Send us the model number through the contact page or WhatsApp and we reply with a configuration and a quotation. Quotations on request.

Who installs and supports the 150A100D after delivery?

We do. ICX Lab handles delivery, installation and training, and coordinates factory service, firmware and repairs with AMETEK CTS on your behalf.

AR RF/Microwave Instrumentation is part of AMETEK Compliance Test Solutions. Product name, specifications and image are taken from ar.ametek-cts.com.

Need a quotation for the 150A100D?

Tell us the standards you test to and we will configure it with the accessories it needs.
