AR · solid-state amplifier

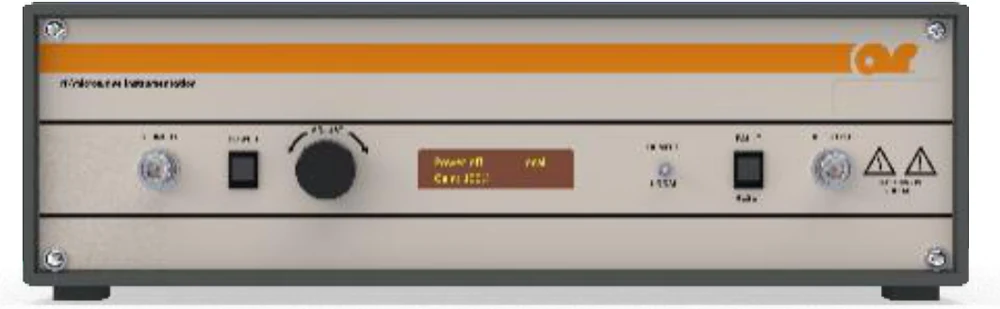

AR 50U1000

One 50 W Class A amplifier from 10 kHz to 1000 MHz, across the conducted and the lower radiated immunity bands.

Request a quotation Spec sheet at ar.ametek-cts.com

Key facts

AR 50U1000 at a glance

50 W CW minimum, 10 kHz to 1000 MHz
Benchtop cabinet, or rack mounting with the cabinet removed
Class A design
100 % mismatch tolerant: it keeps working into a high VSWR, an open or a short circuit
Built-in fault monitoring and protection, including input overdrive above 0 dBm
Remote control by Ethernet, USB, GPIB, fibre-optic serial and RS-232
Modular design for maintenance and service, low acoustic noise
Three-year manufacturer's warranty
US export classification EAR99

Figures from the manufacturer's product page. Specifications are subject to change; the datasheet governs. Quotations on request.

Where it fits

What the 50U1000 is used for

The U series is the universal range: a single amplifier where a laboratory would otherwise need an A series unit for conducted immunity and a W series unit for 80 MHz to 1 GHz. It suits automotive component work in TEM cells and striplines to ISO 11452-3 and ISO 11452-5, development laboratories, pre-compliance set-ups and GTEM cells. The family runs from 10 W to 250 W.

Which model a laboratory needs is a system design question. Send us your test plan and we will size the amplifier with the rest of the system.

Typical standards for this product

ISO 11452-3ISO 11452-5ISO 11452-4IEC 61000-4-20IEC 61000-4-6

Calibration

Calibrated on site, by the people who supplied it

Amplifiers, including AR models, are covered by our RF component calibration: gain and flatness are measured at the drive levels you use. Calibration is carried out in your laboratory by the LAB Support Southeast Asia team, under the A2LA accredited ISO/IEC 17025 scope of LAB Support Ltd.

Amplifier and RF component calibration →

Frequently asked

AR 50U1000 in Malaysia

What is the AR U series?

The universal series: Class A amplifiers that cover 10 kHz to 1000 MHz in a single band, from 10 W to 250 W.

Where can I buy the AR 50U1000 in Malaysia?

ICX Lab Services in Penang is the authorised distributor of AMETEK CTS products, and AR is one of the brands under AMETEK CTS, together with EM TEST and Teseq. Send us the model number through the contact page or WhatsApp and we reply with a configuration and a quotation. Quotations on request.

Who installs and supports the 50U1000 after delivery?

We do. ICX Lab handles delivery, installation and training, and coordinates factory service, firmware and repairs with AMETEK CTS on your behalf.

AR RF/Microwave Instrumentation is part of AMETEK Compliance Test Solutions. Product name, specifications and image are taken from ar.ametek-cts.com.
