On-site EMC testing · Immunity at the customer's premises

An immunity kit that travels to the product and needs no laptop

Large machines, installed systems and production lines cannot come to a laboratory. Two systems carry the immunity tests to them. Conducted RF on site: the NSG 4070C with the KEMZ 801B clamp, which closes over any cable. Transients and ESD on site: the NSG 3040A with its built-in coupling network, and the battery-powered esd NX30.

Request a quotationAll AMETEK CTS products
Teseq NSG 4070C front panel with the conducted immunity test setup on screenNSG 4070C: generator, amplifier and power meters in one 15 kg unit
Conducted RF on site · IEC 61000-4-6

Clamp the cable, set the level, run

The NSG 4070C carries the generator, amplifier, coupler and power meters, and the KEMZ 801B EM clamp couples the disturbance onto the cable the equipment is already using. Nothing is unplugged and no coupling network is matched to the port.

Teseq NSG 4070C conducted immunity test system, front panel
Star product

NSG 4070C

Signal generator, class A amplifier, directional coupler, three power meters and EUT monitoring in one 3U unit, run from its own screen.

  • Generator and power meters 4 kHz to 1 GHz
  • Internal amplifier 35 W to 110 W, 150 kHz to 230 MHz or 10 kHz to 400 MHz
  • Menu-driven level setting, sweep and report on the 5.7-inch display, results to USB
  • Optical, analogue, digital and TTL EUT monitoring
About 15 kg with the internal amplifier, 19-inch, 3U

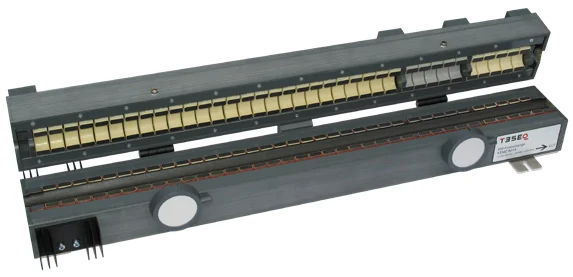

Teseq KEMZ 801B EM clamp
Coupling device

KEMZ 801B EM clamp

The EM clamp of IEC 61000-4-6 Annex A. It couples inductively and capacitively onto a cable up to 20 mm in diameter.

  • 10 kHz to 1000 MHz
  • 100 W to 100 MHz, 50 W to 1 GHz
  • Correction factor within 4 dB from 150 kHz to 300 MHz
  • Improved locking system, ferrite centre 50 mm above ground
About 7 kg, 647 mm long
Teseq CAL 801A adapter set for the KEMZ 801 clamp
Level setting

CAL 801A adapter set

The adapter plates and 100 ohm terminations for stress level setting and correction factor measurement, as the standard draws them.

  • Sets the test level with the clamp in place, from the NSG 4070C menu
  • Stored as a calibration file for the next visit
  • CAL KEMZ fixture available for the Annex A S-parameter check
Fits in the clamp case
The pain point

A laboratory's conducted RF bench does not fit in a car

Conducted RF immunity at a customer site means carrying the generator chain and a coupling network for every port type, then finding a bench and a mains socket for the laptop.

Conventional: the laboratory bench, boxed up

Signal generator, external amplifier, coupler, power meter, a PC and a case of CDNs sized to each port the product has.

PC and softwareSignal generatorExternal amplifierDirectional coupler Power meterCase of CDNsCDN for this portInstalled system needs a bench and mainsto 230 MHzseparate calibrationforward and reverse forward powerM2, M3, AF, T2, T4cable unpluggedon the floor control and readback links: one per instrument
6boxes and a CDN case
1cable unplugged per port tested
1laptop that must not fail on site
  • Each port needs the matching CDN, and a port the case does not cover cannot be tested that day
  • Unplugging a cable on an installed system means downtime and a re-commissioning check
  • Level setting runs through the PC, and cable and coupler losses are entered by hand
  • A driver update or a licence lapse on the laptop stops the visit

Integrated: NSG 4070C with the KEMZ 801B on the cable

One instrument, one clamp that closes over the existing cable, and the adapter set to set the level where the clamp sits.

NSG 4070C GeneratorAmplifierCoupler3 power metersEUT monitoring KEMZ 801Bclamped on the cable Installed systemcable stays connected One menu: level, clamp, adapter calibration, sweep, run
2cases, instrument and clamp
0cables unplugged
0laptops needed to run a test
  • The clamp closes over any cable up to 20 mm, power, signal or data, so every port is tested with the same device
  • Level setting with the CAL 801A takes minutes from the front panel and is stored for the next visit
  • Amplifier, coupler and meters are matched at the factory, so no loss tables travel with the kit
  • Results go to a USB stick, and the report is written back at the office
Our strengths · Conducted RF on site

Why we lead with the NSG 4070C for site work

No laptop on the floor

The NSG 4070C sets levels, sweeps, monitors the EUT and stores results on its own screen. Software is for the office, not the site.

One clamp for every cable

The KEMZ 801B is the EM clamp of IEC 61000-4-6 Annex A. It replaces a case of CDNs and never asks the customer to unplug anything.

Set the level where it matters

The CAL 801A adapter set puts the level-setting fixture at the clamp, so the stress level is set for that cable on that day, not from a laboratory table.

Two cases, one person

The instrument is about 15 kg and the clamp about 7 kg. One engineer carries the conducted RF test into a plant room.

The same instrument in the laboratory

Back at base, the NSG 4070C runs IEC 61000-4-6 with CDNs and automotive BCI with the CIP 9136A, so the site kit is not idle between visits.

Supported and calibrated here

ICX Lab Services trains your team and calibrates the clamp and instrument on the accredited scope, so the kit is ready for the next visit.

Transients and ESD on site · IEC 61000-4-2, -4-4, -4-5, -4-11

Surge, burst, dips and ESD from two cases

The NSG 3040A couples surge, burst and dips onto the equipment mains through its own network, and the esd NX30 runs from its battery base, so the operator can walk around the machine.

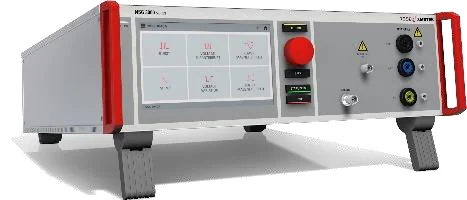

Teseq NSG 3040A multifunction generator
Star product

NSG 3040A

Surge, EFT burst and power quality tests in one box, with a 7-inch touch screen and the coupling network inside.

  • Combination wave surge to 4.8 kV, 2.4 kA
  • EFT burst to 4.8 kV at up to 1 MHz
  • Dips and interrupts to 0 percent, 500 A inrush
  • Built-in single-phase CDN, 300 V AC or DC, 16 A
  • Test Assistance starts a standard test in a few taps, and parameters can be changed while the test runs
About 22 kg, 19-inch, 3U

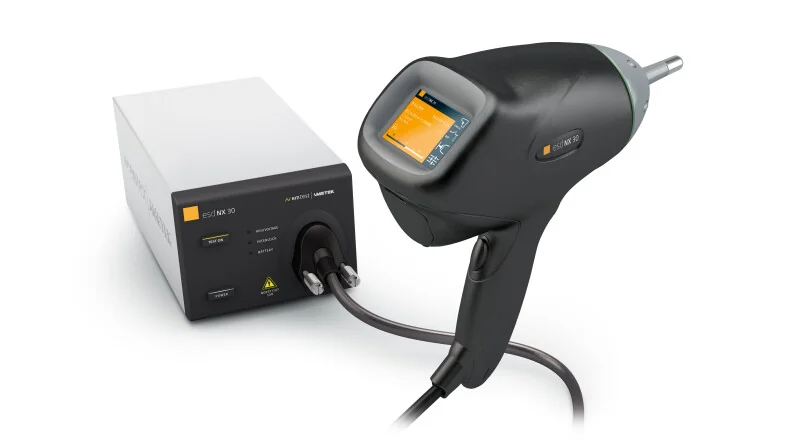

EM TEST esd NX30 ESD simulator with base station
ESD, battery powered

esd NX30

Discharge gun with a colour touch panel and a battery base station that needs no mains lead during the test.

  • Air and contact discharge, 200 V to 30 kV
  • Light 1.25 kg gun with the colour touch display on the gun itself
  • Battery base rated for 30,000 discharges at 30 kV, cradle included
  • Up to 25 Hz, threshold detection, activity log
  • Self-calibration at any time, R/C module detection
  • Interchangeable networks for IEC 61000-4-2 and ISO 10605
Base 6.5 kg, gun 1.25 kg
The pain point

Three generators, a coupling network and a variac, for three tests

Surge, burst and dips are three instruments in a distributed kit, plus the network that joins them to the mains and a PC to sequence them. On site, that is a trolley, not a case.

Conventional: a generator per test

Separate surge and burst generators, a dips unit with a variac, an external coupling network and a PC to run the sequence.

PC and softwareSite mains Surge generatorBurst generatorDips unit and variac Coupling networkInstalled system runs three boxesthrough the network own caseown caseown case, heavy re-cabled per teston the floor three control links, and the coupling network re-wired for each test
5boxes on the trolley
3times the mains is re-cabled
1laptop to sequence it all
  • Each generator has its own case, its own mains lead and its own place in the sequence
  • The coupling network is re-wired between surge, burst and dips
  • Thresholds are found by editing a parameter on the PC and re-running
  • Reports are assembled from three instruments' logs afterwards

Integrated: NSG 3040A with the esd NX30

One box couples surge, burst and dips through its own network. The ESD simulator is a second case with its own battery.

NSG 3040A Surge 4.8 kVBurst 4.8 kVDips, interruptsCoupling network, 16 A, 300 V 7-inch touch screen, Test Assistance esd NX30battery base and gun Installed systemmains and enclosure One screen: pick the standard, tap Test Assistance, run
2cases, generator and ESD
1mains connection for all three tests
0laptops needed to run a test
  • Surge, burst and dips run from one mains connection through the internal 16 A network
  • Test Assistance starts the standard test in a few taps, and the thumbwheel changes a parameter while the test runs to find a threshold
  • The ESD gun works from its battery base, so the operator moves around a large system without a mains lead
  • Test reports are written on the instrument as the test proceeds
Our strengths · Transients and ESD on site

Why we lead with the NSG 3040A and esd NX30

Three tests, one box, one mains lead

Surge, burst and dips share the NSG 3040A's internal coupling network, so the equipment mains is connected once.

Find the threshold on the spot

Parameters can be changed while the test runs. A site visit ends with the level at which the product fails, not just a pass or a fail.

Battery where it counts

The esd NX30 base station carries a battery rated for 30,000 discharges at 30 kV, so the ESD test walks around the machine without a mains lead.

Checks itself on site

The esd NX30 self-calibrates at any time and detects which R/C network is fitted, so a discharge at the wrong network cannot go unnoticed.

Comfortable for a long session

The esd NX30 gun weighs 1.25 kg with its network fitted, and the colour touch display sits on the gun, so the operator reads and changes the level without turning to the base. A cradle rests it between points.

Supported and calibrated here

ICX Lab Services trains your team and calibrates the generator, network and ESD gun on the accredited scope, so the kit is ready for the next visit.

Test coverage

On-site immunity tests and what each case weighs

Weights are datasheet figures for the standard configuration, to help plan transport and access. Emission measurement on site needs a portable receiver, which we quote separately.

TestStandardTypical requirementEquipment and weight
Conducted RF on site
Conducted RF immunityIEC 61000-4-63 V or 10 V, 150 kHz to 1 GHz, on any cableNSG 4070C, about 15 kg, with KEMZ 801B, about 7 kg
Level setting for the clampIEC 61000-4-6 Annex AStress level set at the clamp positionCAL 801A adapter set
Transients and ESD on site
SurgeIEC 61000-4-5Up to 4 kV line to earth, 2 kV line to lineNSG 3040A, about 22 kg
Electrical fast transientIEC 61000-4-4Up to 4 kV at 5 kHz or 100 kHzNSG 3040A
Voltage dips and interruptionsIEC 61000-4-11Dips to 0 percent, single phase 16 ANSG 3040A
Electrostatic dischargeIEC 61000-4-2, ISO 10605Up to 30 kV air and contactesd NX30, base 6.5 kg and gun 1.25 kg

Need a test at the customer site?

We supply this kit with training and on-site calibration. Tell us the tests, the ports and the site, and we size the kit and the cases. Quotations on request.
